[4WD Off-Road Recumbent Quad-F426E] - TrikExplor AWD Fat Tire Recumbent Quad
[4WD Off-Road Recumbent Quad-F426E] - TrikExplor AWD Fat Tire Recumbent Quad
[4WD Off-Road Recumbent Quad-F426E] - TrikExplor AWD Fat Tire Recumbent Quad
[4WD Off-Road Recumbent Quad-F426E] - TrikExplor AWD Fat Tire Recumbent Quad
On Sale

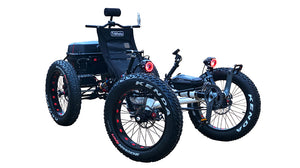

Electric Fat Tire Recumbent Quad-F420E

Color
Red
White
Black
Blue
Battery
Motor
  • -$-5,999.00
  • Regular price $5,999.00
    /
    Click here to be notified by email when Electric Fat Tire Recumbent Quad-F420E becomes available.
    Type: Recumbent Quads



    F420E is built primarily to be easy to ride for some people who want more stability when off-roading. It offers a better view, good ground clearance, and additional cargo capacity, which makes it the perfect utility vehicle for adventure off-road, more extreme sport. Four fat tires offer the quad with excellent stability. Two rear powertrains give the quad ability to handle most of the terrains while off-roading. It is a grand touring vehicle with extra cargo capacity and remarkable ground clearance. All Terrain with high mobility: snow, sand, mountain, river, climbing stairs.

    Medium seat height
    The medium seat height helps you get on and off the trike easily and provides a clear view of traffic.

    Superior transmission system
    The two-stage transmission system minimizes the component size and provides efficient working. Meanwhile, it reduces the tension to maximize chain life.

    Rear two air suspensions can be optimized by simply adjusting, which delivers a comfortable and controlled ride.

    The power diver is designed to drive a pair of wheels while allowing them to rotate at different speeds when turning a corner. What's more, the divider can ensure one wheel to keep turning when slip occurs on the other wheel.

    Large rear rack
    The open designed stainless steel rear rack gives an ideal storage solution for large and heavy loads.


    A regular wheelset and fat wheelset can be converted based on this bike.

    Measurements

    Overall width: 90 cm/ 35.43 in

    Overall height: 95 cm/ 37.4 in
    Overall length: 180-200 cm/ 70.87-78.74 in
    Track width: 85 cm/33.46 in
    Wheelbase: 110 cm/ 43.31 in
    Ground clearance: 26 cm/ 10.24 in
    Bottom seat height: 40 cm/ 15.75 in
    Seat width: 37 cm/ 14.57 in
    Seat depth: 25 cm/ 9.84 in
    Seat angle: 40°
    Turning circle: 4.0 m/ 157.48 in
    Wheel size: 20 in
    Max. load: 150 kg/ 330.69 lb
    Rider height: 165 - 200 cm/ 5'4'' - 6'56''

    Components

    Frame: Aluminum 6061 T6
    Seat: Ergo-fiberglass seat
    Tires: Kenda 20x4.0"
    Front brakes: Avid BB7 mountain mechanical disc brake
    Rear brakes: Avid BB7 mountain mechanical disc brake
    Brake levers: Avid FR-5
    Shifter: Shimano Alivio SL-M4000 3x9-speed
    Front derailleur: Shimano Sora FD-3503-B
    Rear derailleur: Shimano Alivio SL-M4000 3x9-speed
    Crankset: 42T
    Cassette: Shimano CS-HG400-9 9-speed 11-32T
    Chain: Shimano CN-HG73 9-speed
    Suspension: DNM AOY-36RC Air Shock
    Motor: 48v 500w mid-motor
    Battery: 48v 20Ah lithium battery
    Display: LCD
