On Sale

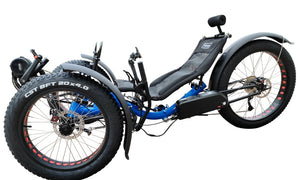

Rugged Terrain Fat Trie Recumbent Trike-F326E

Model

  • -$-2,499.00
    • $2,499.00
    /
    Click here to be notified by email when Rugged Terrain Fat Trie Recumbent Trike-F326E becomes available.
    Type: Recumbent Quads
    Key features
    Available with a variety of gear options. The fat tires provide excellent float and traction over the soft ground and bumpy trail. You can switch between the fat tires and standard tires in the use of different terrains. Custom-built front and rear mudguard protect the quad from all circumstances.
    HTB1xMgNgtcnBKNjSZR0q6AFqFXag

    Wide range gears

    Available with a variety of gear options, F326E can be geared for the most challenging terrain.

    Aerodynamic

    A low seat position and the recline angle as little as 30 degree minimizes frontal area and reduces aerodynamic drag.

    Convertible

    Fat tire and normal tire can be converted simply and freely. It not only gives you a lot of fun on different terrains, also help you save much cost.

    You can have two models (326 & F326) if you buy one F326 and extra road wheel set.



    QQ图片20180528182156

    F326 with road wheelsF326

    Measurements
    Overall width: 38.58 in
    Overall height: 41.34 in
    Overall length: 77.80 in - 85.67 in
    Track width: 34.25 in
    Wheelbase: 53.15 in
    Ground clearance: 5.31 in
    Bottom seat height: 13.39 in
    Seat width: 14.57 in
    Seat Depth: 9.84 in
    Seat angle: 30°
    Turning circle: 170.08 in
    Weight: 50.71 lb
    Wheel size: 24 in
    Rider height: 64.96 in - 78.74 in
    Max. load: 275.58lb
    Components
    Frame: Aluminum 6061 T6
    Seat: Ergo-fiberglass seat
    Tires: 20x4.0"/ 26x4.0" rear
    Front brakes: Avid BB7 mountain mechanical disc brake,
    Rear brake: Avid BB7 mountain mechanical disc brake,
    Brake levers: Avid FR-5
    Shifter: Shimano Alivio SL-M4000 3x9-speed
    Front derailleur: Shimano Alivio FD-M4000-DS
    Rear derailleur: Shimano Alivio RD-M4000 9-speed
    Crankset: Shimano Alivio FC-M4050 40-30-22T
    Cassette: Shimano CS-HG400-9 9-speed 11-32T
    Chain: Shimano CN-HG73 9-speed
    Optional(F326E)
    Motor: Bafang Mid Motor BBS02 48v 500w
    Battery: 48v 14.5Ah lithium battery with Panasonic cells
    Display: Bafang Colorful  LCD
    Crankset: Bafang 42T with pedal assist
