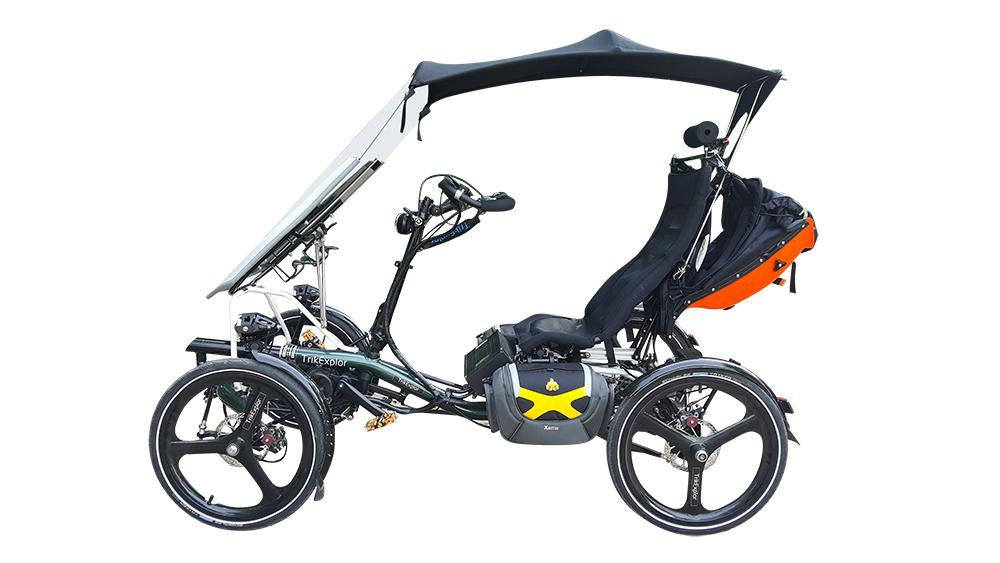

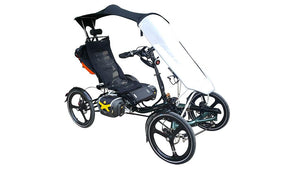

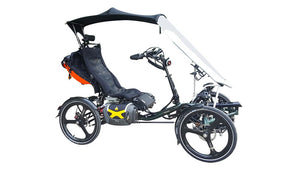

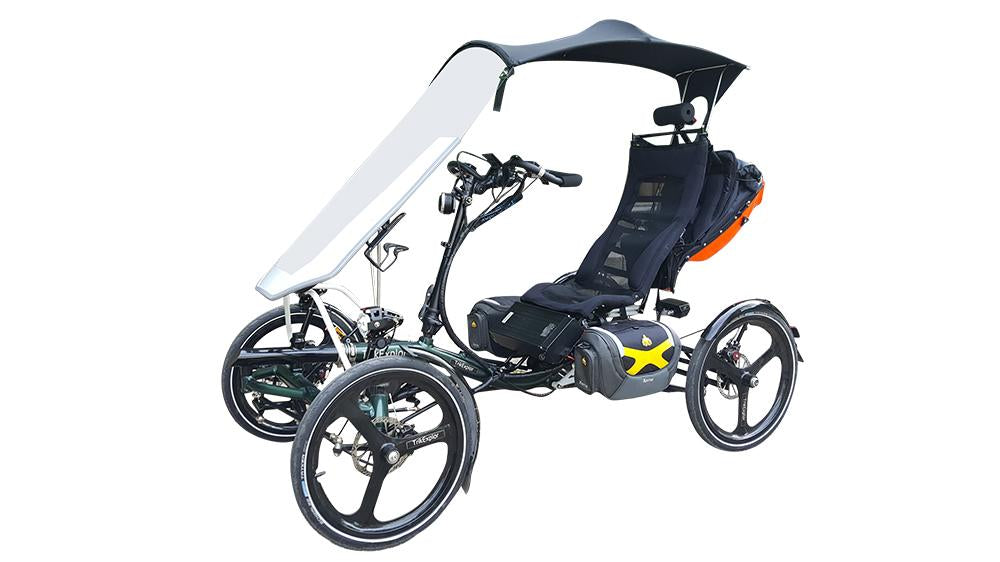

Delivers the ultimate comfort and is accessible for people with limited mobility. Highly noticeable security features advance the level of safety and protect the rider while touring in cities. The quad carries the complete lighting system, the butterfly handlebar, two rear suspensions, power divider, integrated alloy wheels, side pods, glare-free waterproof 3.5" color display.
High seat height
The high seat height help you get on and off the quad easily and provides riders with a fabulous unobstructed view for city traveling.
The silver strong PC reflective strip, highly visible orange hard shell bag, melodic horn increase visibility in traffic, which allow you to get a safe trip in crowded cities. We offer a complete lighting system, including headlight, rear light with brake light, turn indicator with clicking sound. You can easily set their marks in the traffic. It makes you ride more safe.
Specially made side pods are ideal for storing your items and keeping them to hand without getting off your quad.
Bafang Electric Drive System
The Bafang electric drive system includes a powerful motor with a smooth output. Providing a seamless and easy ride from a standing start, simply pedal as normal and the motor will assist at your preferred level.
Large, glare-free, waterproof 3.5 inch color display
The color display has a clear and intuitive interface, loaded with functionality.
It can also works excellently even in direct sunlight and raining day.
Riding all year round
Wind fairing, UV resistant roof, mudguards extend the quad season to all year round.
Overall width: 90 cm/ 35.43 in
Overall height: 140 cm/ 55.12 in
Overall length: 182 cm/ 71.65 in
Track width: 85 cm/33.46 in
Wheelbase: 125 cm/ 49.21 in
Ground clearance: 19 cm/7.48 in
Bottom seat height: 53 cm/ 20.87 in
Seat width: 37 cm/ 14.57 in
Seat depth: 25 cm/ 9.84 in
Seat angle: 60-70°
Turning circle: 4.0 m/ 157.48 in
Wheel size: 50.8 cm/ 20 in
Max. load: 150 kg/ 330.69 lb
Rider height: 165 - 195 cm/ 5'4'' - 6'4''
Frame: Aluminum 6061 T6
Seat: Ergo-fiberglass seat
Tires: Schwalbe 20x1.5"
Front brakes: Avid BB7 mountain mechanical disc brake
Rear brakes: Avid BB7 mountain mechanical disc brake
Brake levers: BAFANG aluminum alloy
Shifter: Shimano Alivio SL-M4000 3x9-speed
Rear derailleur: Shimano Alivio RD-M4000 9-speed
Crankset: BAFANG 48T with cadence sensor pedal assist
Cassette: Shimano CS-HG400-9 9-speed 11-32T
Chain: Shimano CN-HG73 9-speed
Suspension: Exa Form 388RL shock
Motor: BAFANG 48v 500w mid-drive motor
Battery: 48v 20Ah lithium battery
Display: BAFANG LCD color display
