Touring Recumbent Quad-Model 420/420E
Factory configured, assembled and tested before shipment
Estimated 8–10 weeks from configuration confirmation to delivery
$899 door-to-door delivery where available
5-year frame warranty
Configuration support before production
STABLE EVERYDAY MOBILITY
Four-Wheel Confidence for Commuting, Recreation and Cargo

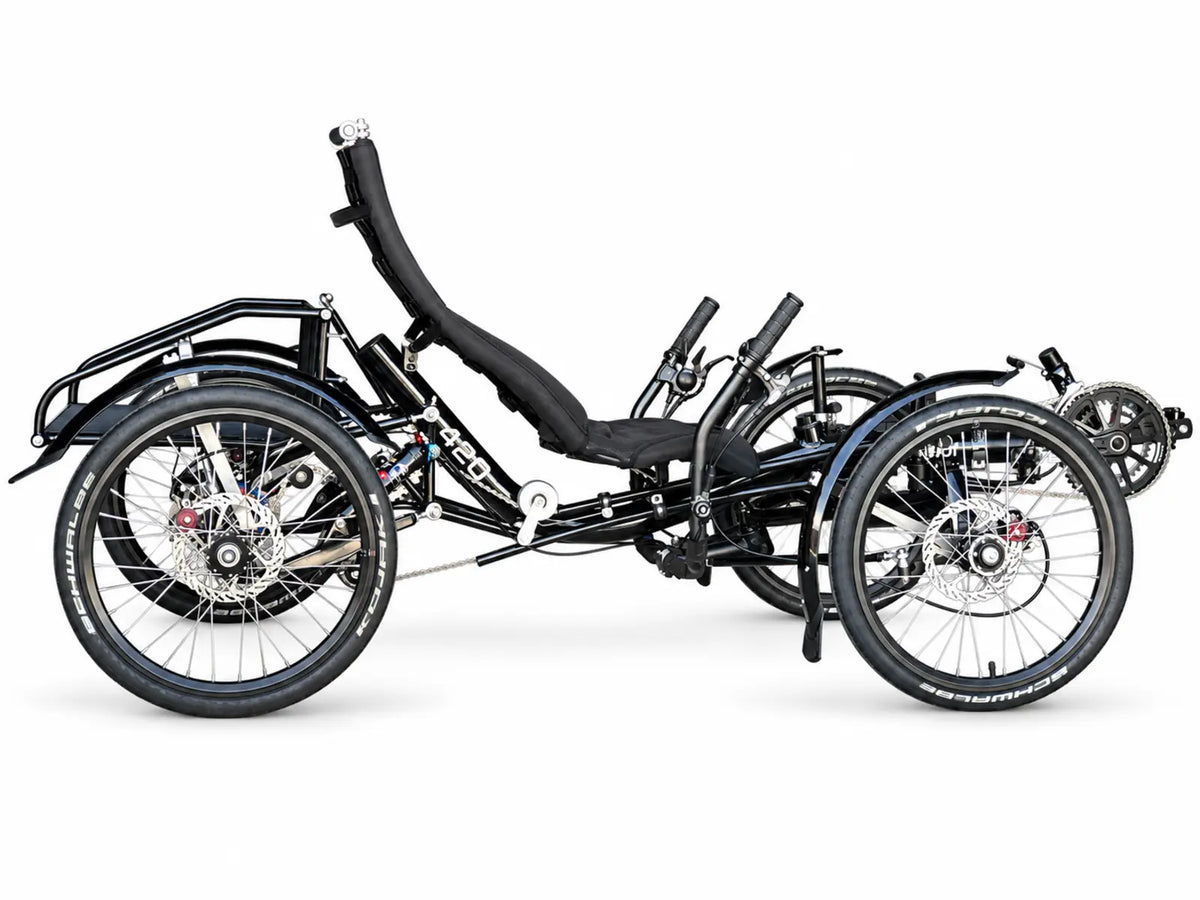

The TrikExplor 420 / 420E combines a stable four-wheel chassis, comfortable recumbent seating and a practical rear cargo platform. Choose the pedal-only drivetrain or configure Bafang mid-drive assistance in the product options above—the frame, riding position and everyday utility remain the same.
For riders 165–200 cm
130 kg rider capacity
50 kg rear cargo capacity
27-speed drivetrain
CHOOSE YOUR POWER SYSTEM ABOVE
One Product, Five Factory Configurations
The selected product variant determines the motor, battery quantity and live purchase price.
| Product option | Power system | Battery | Lighting |
|---|---|---|---|
| Pedal-Only 420 | Shimano 3 × 9 pedal drivetrain | None | No powered lighting |
| 420E 500W / Single Battery | Bafang BBS02 500W mid-drive | 1 × 48V 20Ah | Included |
| 420E 500W / Dual Battery | Bafang BBS02 500W mid-drive | 2 × 48V 20Ah | Included |
| 420E 1000W / Single Battery | Bafang BBSHD 1000W mid-drive | 1 × 48V 20Ah | Included |
| 420E 1000W / Dual Battery | Bafang BBSHD 1000W mid-drive | 2 × 48V 20Ah | Included |
Select the required Power System and Color in the purchase area above. Display, light and other compatible component appearance may change as production parts are updated.
STABILITY WITHOUT THE BALANCING ACT
Four Wheels, a Low Seat and a Relaxed Riding Position
The 420 platform is designed for riders who want more stability than a two-wheel cycle and more usable cargo space than a typical recumbent trike. Its 37 cm seat height and four-wheel stance let you stop without putting a foot down, while the adjustable mesh backrest supports a relaxed recumbent position.
- Under-seat indirect steering keeps the cockpit open
- Adjustable boom fits riders approximately 165–200 cm tall
- Adjustable backrest angle for different riding positions
- Dual rear air shocks help isolate everyday road vibration
CONTROL THAT STAYS MECHANICAL
27 Speeds, Four-Wheel Braking and a Dedicated Parking Control
A Shimano 3 × 9 drivetrain gives the rider a broad selection of gears for paved-road riding. The four-wheel Avid BB7 disc-brake system uses separate left and right controls for the front wheels, while the rear wheels are linked to a dedicated parking-brake control.
ShiftersShimano Alivio SL-M4000, 3 × 9
CranksetShimano Sora FC-3503, 50/39/30T
CassetteShimano CS-HG400-9, 11–32T
BrakesFour-wheel Avid BB7 mechanical discs
420E RANGE
Choose One Battery or Double the Onboard Capacity
Reference range is based on an approximately 75 kg rider on flat paved roads, primarily using pedal assist with occasional throttle use when starting. Terrain, speed, temperature, tire pressure, rider and cargo weight, assistance level and riding style can materially change actual range.
WHAT IS INCLUDED
Built for Everyday Riding and Practical Cargo
420 and 420E
- Fenders
- Headrest
- Rearview mirrors
- Safety flag and pole
- Bottle cage
- Open rear cargo rack
420E Additional Equipment
- Bafang mid-drive system
- One or two removable 48V 20Ah batteries
- Color display
- Throttle, removable by request
- Headlight, turn signals and brake lights
Optional Equipment
- Sun canopy — $300
- Front bumper with fog lights — $300
- Custom fore-aft adjustable seat adapter — contact us
DIMENSIONS & FIT
Check Your Space Before Ordering
| Overall length | 180–200 cm, depending on boom adjustment | Overall width | 90 cm |
|---|---|---|---|
| Overall height | 91 cm | Seat height | 37 cm |
| Seat width | 37 cm | Ground clearance | 17 cm |
| Track width | 85 cm | Wheelbase | 110 cm |
| Recommended rider height | 165–200 cm | Maximum rider weight | 130 kg |
| Rear cargo capacity | 50 kg | Tires | Four 20 × 2.0 in road-oriented tires |
| Suspension | Dual rear air shocks | Steering | Under-seat indirect steering |
| Best terrain | Paved roads | Occasional terrain | Gravel and maintained unpaved roads |
Transport notice: The 420/420E does not fold and is not intended to fit inside a typical
passenger car. Complete-vehicle transport is recommended. Confirm access, storage and delivery space before ordering.
SEE IT IN MOTION
420 / 420E Videos
See the four-wheel platform, riding position and key functions in real-world demonstrations.
420 / 420E Overview
Riding Demonstration
Features and Details
BEFORE YOU ORDER
420 / 420E FAQs
What is the difference between the 420 and 420E?
They use the same core quad chassis. The 420 is pedal-only. The 420E adds a Bafang mid-drive motor, removable battery power, pedal assist, a removable throttle, a color display and powered lighting.
Is the 420/420E intended for off-road riding?
No. It is primarily designed for paved-road commuting, recreation and everyday riding. It can occasionally use gravel or maintained unpaved roads, but it is not intended for sand or technical off-road terrain.
Can the seat move forward and backward?
Not in the standard configuration. Rider fit is adjusted through the telescoping boom and the backrest angle. A custom fore-aft adjustable seat adapter can be specified during production.
Can it fit inside a normal car?
It does not fold and is not intended to fit inside a typical passenger car. Complete-vehicle transport is recommended. Check the full dimensions before ordering or planning transport.
How far can the 420E travel?
Reference range is approximately 80–100 km with one 48V 20Ah battery or 160–200 km with two batteries under the stated test conditions. Actual range can vary materially.
Does the 420E have reverse?
No. The 420E does not include an electric reverse function.
Will every component look exactly like the photos?
Product images primarily show the frame design, riding layout and core mechanical structure. The appearance, brand or model of tires, lights, displays, mirrors and other compatible components may vary with availability, production updates and the selected configuration. Substitutions will maintain the ordered function and applicable specification.
MADE FOR YOUR ORDER
Confirm Fit, Configuration and Delivery Before Production
ProductionApproximately 3 weeks
International transitApproximately 4–6 weeks
Customer assemblyRear wheels, rear rack and included accessories
Each 420/420E is prepared for the customer and shipped internationally as an oversized vehicle. Once an order has entered production or has shipped, it cannot be cancelled, returned or exchanged. Review dimensions, rider fit, configuration, intended use and delivery requirements carefully before ordering.
Shipping damage, missing parts and confirmed warranty issues are handled separately under the applicable shipping and warranty policies and are not treated as voluntary returns.
Ask Us Before Ordering5 yearsFrame
2 yearsMotor
2 yearsDisplay
1 yearBattery
Product images are representative and primarily show the frame design, layout and core components. Included accessories may not be installed in every photograph. Refer to the current “What Is Included” section for standard equipment. Component appearance may vary between production batches.
