Entry-level Folding Suspension Recumbent Trike

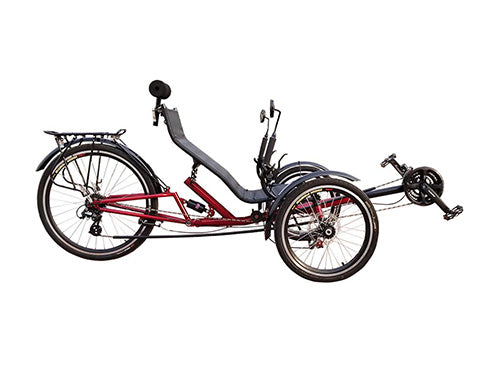

M-009 Entry-Level Folding Suspension Recumbent Trike | Comfort, Portability & Performance

This Trike Is For You If…

• You want a full-comfort trike at the lowest price we make
• You ride from your front door — storage is your need, not transport
• Home space is tight: you want it to fold upright and park in a corner
• It's your first trike and you want the recumbent life without the premium price

Consider Another Model If…

• You need it in a car — even a big one → the [M009FD] lies flat in larger trunks and back seats
• You'll fold it often and don't want to remove the seat every time → the [M009FD] folds with the seat on
• You're traveling — RV, road trips, flying → that's the [M320]

M009 vs. the Other Folders — in 30 Secondshttps://youtube.com/shorts/YEFaqX97blA?si=uIsLJ2OEke_L6sI7

• M009 (this trike): the budget choice — folds upright for home storage, 4 minutes, 35 kg. Built to store, not to travel.
• M009FD (+$400): the easiest fold — nothing comes off, flat in 2 minutes; travels in larger trunks and back seats. Heavier (40 kg).
• M320 ($2,999): the travel trike — two-level fold down to 90 × 52 × 53 cm at 19 kg, rolls like luggage.

Key Features & Why You’ll Love It

• Ultimate Folding Convenience: The precision-engineered frame folds quickly for space-efficient storage and easy transport in most vehicles.

• Adaptive Rear Suspension: Effectively absorbs shocks from bumpy roads and uneven terrain, ensuring a plush and fatigue-free riding experience.

• Ergonomic Comfort Seat: Equipped with an Ergo-mesh seat that offers 3-position angle adjustment (42-49°), allowing you to find your perfect ergonomic posture for long-distance touring.

• Precision Shimano Drivetrain: A wide-range Shimano 3x8 drivetrain (24 speeds) provides effortless shifting and the perfect gear for both steep inclines and fast flats.

• Superior Braking Power: Features Avid BB5 mechanical disc brakes on the front and a Promax V-brake on the rear for reliable, all-weather stopping performance.

• Comprehensive Accessory Package: Every M-009 comes with a complimentary set of essential accessories, including a headrest, rear rack, mirrors, fenders, and a high-visibility flag.




  The Fold: Built to Store

  The M009's vertical fold does one job well: it gets a full-size trike out of your way. Seat off first, then the frame folds upright in about four minutes — no tools [待确认]. Folded, it stands on its own at 125 × 88 × 80 cm: the corner of the garage, the end of the hallway, beside the RV at the campsite. What it doesn't do is cars — at 35 kg and this footprint, it's not a trunk trike, and we won't pretend otherwise. If your trike needs to travel, the M009FD and M320 below do that job.



Folding Steps:

Remove the seat.
Loosen the two screws on the folding bracket.
Fold the trike directly.

Technical Specifications

Electric Assist Options (Model M-009E)

Take the effort out of hills with our factory-integrated electric upgrade options:

• Option 1: 36V 250W Rear Hub Motor with a 36V 13Ah Lithium Battery.

• Option 2: 48V 500W Mid-Drive Motor with a 48V 20Ah Lithium Battery for maximum torque and range.

• Display: All electric models feature a clear LCD display for real-time speed, battery, and trip tracking.

FAQ

Q: M009 vs. M009FD — is the $400 difference worth it?

A: If you'll fold it weekly or need it in a car: yes. The M009FD folds with the seat on (nothing to remove), folds twice as fast (2 min vs 4), lies flat instead of standing, and travels in larger trunks and back seats. If it lives in your garage and you ride from home, save the $400 — the ride is the same.

Q:M009 vs. M320 — both fold, what's the real difference?

A:Purpose. The M009 folds for home storage: 125 × 88 × 80 cm, 35 kg, stands upright in a corner — not for cars. The M320 folds for travel: down to 90 × 52 × 53 cm at 19 kg, with caster wheels so it rolls like luggage. Store it → M009. Travel with it → M320.

Q:Can I transport the M009 in my car?

A:We don't recommend it — 35 kg and a 125 × 88 cm folded footprint make it a poor trunk trike, and the fold hardware is designed for storage duty, not daily loading. That's not a defect; it's why it costs $1,400 less than the M320

Q:Does it have a parking brake?

A:Yes — standard, like every TrikExplor trike.

Q:How hard is assembly?

A:To ensure safe shipping, the trike is partially disassembled and secured in a reinforced crate. However, we provide comprehensive instructions and all the necessary free accessories to get you on the road quickly.

Questions before you buy? Email trikexplor@gmail.com or WhatsApp +86 189 0382 9969 — tell us your height and where you'll store it, and we'll tell you honestly if the M009 is right (including when it isn't).

Start your recumbent journey today.

Discover why the M-009 is the world's favorite entry-level suspension trike. [Add to Cart] to secure your M-009, or [Contact Our Sales Team] for B2B inquiries and dealership opportunities.
