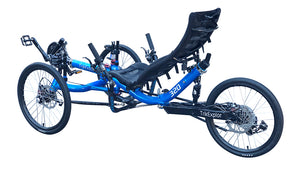

TrikExplor 320 / 320E Compact Road Recumbent Trike with Rear Air Suspension
320 / 320E Compact Road Recumbent Trike
Three 20 × 1.5 in road tires · KS A5-Re adjustable rear air suspension · 6061-T6 aluminum frame · Pedal or 500W Bafang electric configuration
The TrikExplor 320 / 320E combines three equal-size 20-inch road wheels, a relatively compact layout and an adjustable rear air shock. The 320 is the pedal-powered version; the 320E adds a 48V 500W Bafang mid-drive system and a standard 48V 20Ah lithium battery.
Rear Air Suspension, Not a Suspension Seat
The KS A5-Re adjustable rear air shock is fitted to the rear suspension system, allowing air pressure to be set appropriately for the rider and conditions. The nylon-mesh seat does not use the separate leaf-spring and rubber-absorber seat suspension found on the 326 series. This is rear-wheel suspension, not full front-and-rear suspension.
Compact Wheels and Rider Position
All three wheels use 20 × 1.5-inch road-oriented tires for paved roads and suitable firm surfaces. The 37 cm seat-bottom height and compact layout may be useful to riders who prefer a higher entry position than the low-profile 326 series. Fit and ease of entry differ from rider to rider.
Pedal or Electric Configuration
320: Shimano 2 × 9 mechanical drivetrain (18 gear combinations).
320E: Bafang 48V 500W mid-drive with a single front chainring and Shimano 9-speed rear drivetrain; one 48V 20Ah battery is included as standard.
Optional second battery (+$350): The 320E supports two 48V 20Ah batteries mounted at the same time, with one at the rear rack and the second suspended beneath the cross-frame beam. Select the dual-battery electric variant ($4,249) if you want both batteries. This option is not offered on the pedal-only 320. Actual battery range varies with conditions.
Technical Specifications
| Wheels / tires | 3 × 20 × 1.5 in |
|---|---|
| Frame | 6061-T6 aluminum alloy |
| Overall length | 185–205 cm |
| Overall width | 90 cm |
| Overall height | 91 cm |
| Ground clearance | 17 cm |
| Bottom seat height | 37 cm |
| Turning circle | 4.0 m (existing published specification) |
| Non-electric weight | 20 kg (existing published specification) |
| Maximum rider load | 125 kg |
| Recommended rider height | 165–200 cm |
| Rear suspension | KS A5-Re adjustable air shock |
| Brakes | Avid BB7 mechanical disc brakes; parking-brake arrangement |
Real-World Configuration
The following photograph shows an example 320E with additional canopy and accessories. These accessories are not implied to be standard equipment; ask our team about compatibility.
Choose Your Wheel Configuration
The 320 / 320E and F320 / F320E use the same basic frame platform with different wheel configurations. The 320 has three 20 × 1.5-inch road-oriented tires; F320 has three 20 × 4.0-inch fat tires. Contact TrikExplor to discuss the setup for your usual riding surfaces.
Before You Order
We normally begin fit assessment with the rider's height, weight and intended riding conditions. Seat entry, rider fit, tire selection, battery location, and accessory fit should be discussed with our engineering team where necessary.
Choose the desired color and pedal-only, single-battery electric or dual-battery electric configuration using the product options above. Contact TrikExplor engineering support →
